Details
TSS Pin Option: To utilize the geometry correction of the TSS Pin setup you will need a tie rod ends that correct bump steer. The TSSPIN moves the pivot down 1.75", the closest you can match your bump steer kit to that the better. We are planning on releasing a bump steer correction kit in the future.
Our Solid Front Arms can be customized for a variety of applications. Choose our TSS Pin option to correct geometry and replace your stock ball joint with a 7/8 COM Bearing and our custom made pin that bolts into a stock Subaru knuckle just like a ball joint (read more below). For rally and off road you can choose our stock ball joint option which will fit a stock Subaru ball joint.
Note: Fitting these arms on a GC chassis will require some hammering to fit around part of the frame rail.
These Solid Arms are built to be very strong, and therefore can’t accommodate wide tires with high steering angle - for that you should check out our drift arms.
All solid arms have 5mm of additional caster built into them compared to stock arms, but this can be increased all the way up to an additional 45mm of caster. All arms can be shimmed within the limits of the LCA pocket on your front frame to make adjustments to caster after the fact, but this requires replacing the misalignment spacers in your heim joints.
Arm Extension: We offer arm extensions as well as stock length for all arms. Stock CV’s won’t last at +20mm and won’t work at all for +40 or +60
TSS Pin Option: To utilize the geometry correction of the TSS Pin setup you will need a tie rod ends that correct bump steer. The TSSPIN moves the pivot down 1.75", the closest you can match your bump steer kit to that the better. We are planning on releasing a bump steer correction kit in the future.
These arms are fabricated with high strength materials such as 4130 tubing, and Strenx plate. They are mig welded and we stand by our product we will repair or replace manufacture failures or work with you if you did unfortunately damage our products.

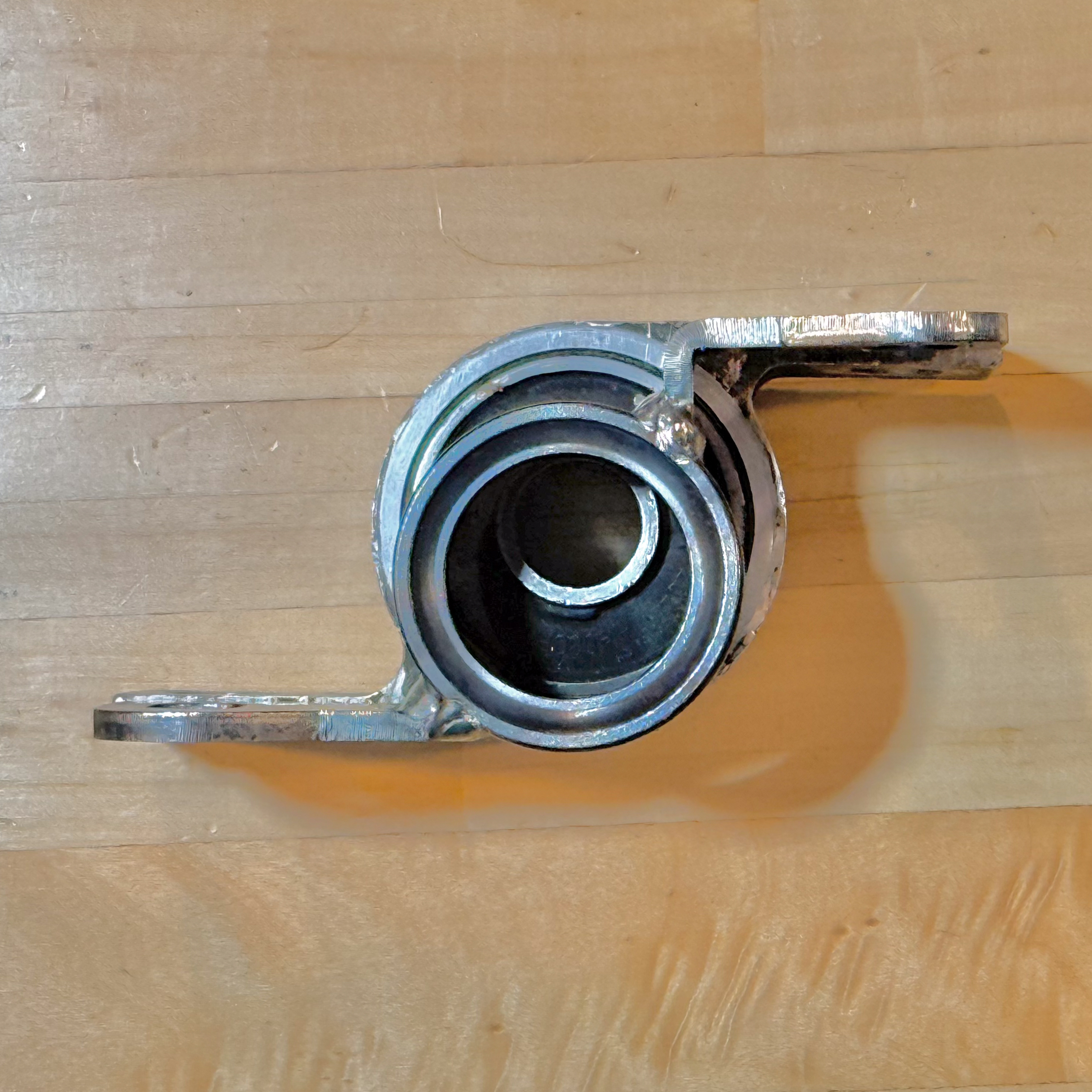

Included caster mounts come with built in anti-dive/anti lift depending on which way you install them.
Powder coating: For custom colors, check out www.prismaticpowders.com. Getting powder coating through us will add another week to your order as this is not an in-house operation. If you choose a custom color, please make a note of what color you would like during check out.
